Product Overview

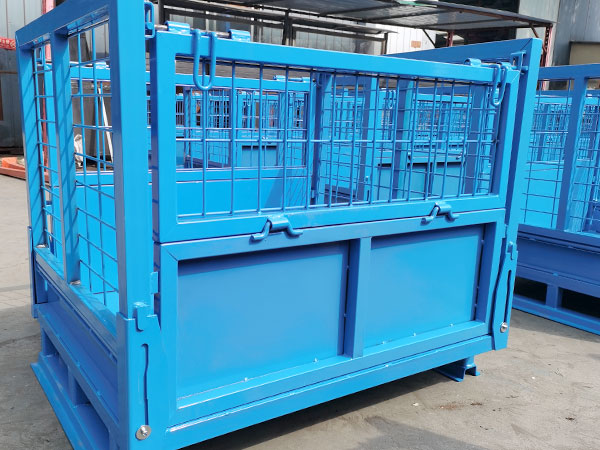

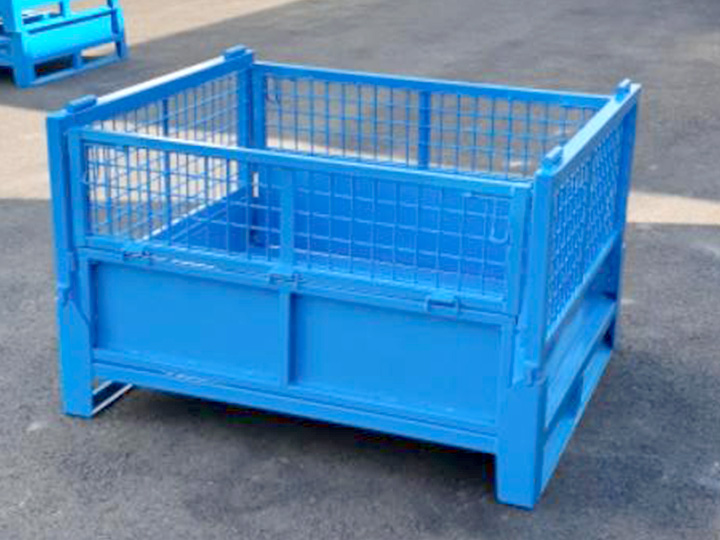

A collapsible cage pallet is a reusable metal storage container that integrates a pallet base with removable mesh side panels.
Their most distinctive feature is their collapsible design. When empty, they can be folded flat to reduce storage and transportation costs. They are fully compatible with forklifts and pallet jacks and support multi-level stacking during loading. They are widely used in factories, logistics centers, and distribution warehouses for the handling of automotive parts, hardware products, packaging materials, and bulk goods.
Applications

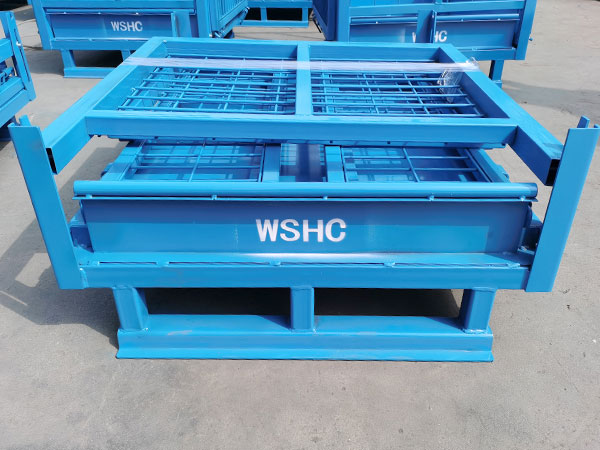

Space-Saving Foldable Design

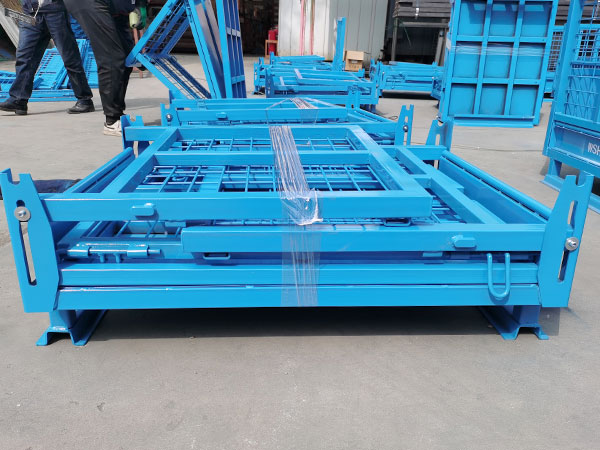

The side panels fold flat when empty, reducing volume by more than 60%. This significantly lowers the costs associated with shipping empty pallets by sea and storing idle inventory.

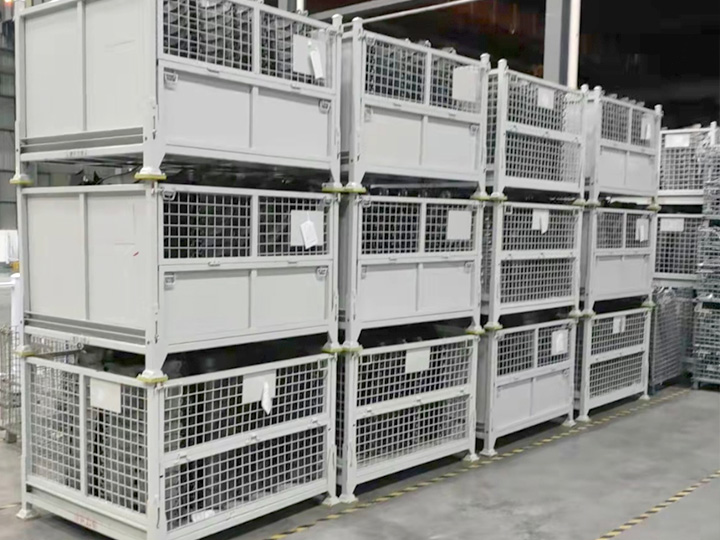

Stackable for Improved Warehouse Utilization
Precision-engineered interlocking top and bottom frame design. Supports safe stacking of 3–5 layers under rated load capacity and can be used with racking systems to fully utilize vertical warehouse space.
Universal Forklift Compatibility
Standard four-way forklift entry openings. Seamlessly compatible with manual pallet jacks, electric forklifts, and automated conveyor systems.
Long Service Life and Reusability
Manufactured from high-strength Q235 steel wire. 100% eco-friendly and designed for long-term reuse, helping you reduce operating costs.
Details
| Item | Standard Specification | Custom Options |
| Product Name | Collapsible Cage Pallet / Foldable Mesh Pallet Cage | Heavy-duty / Galvanized model |
| Raw Material | Q235 High tensile steel wire | Thickened wire for heavy load |
| Wire Diameter | 4.0mm / 5.0mm | 3.5mm ~ 6.0mm customizable |
| Mesh Size | 50×50mm / 100×50mm | Custom mesh aperture |
| External Standard Size (L×W×H) | 1200×1000×800mm / 1100×1100×750mm | Any customized dimension |
| Static Load | 2000kg – 4000kg | Up to 5000kg reinforced version |
| Dynamic Load | 800kg – 2000kg | Custom load standard |
| Safe Stacking Layers | 3 – 4 layers | 5 layers for reinforced structure |
| Surface Treatment | Powder coating / Electric galvanized | Hot-dip galvanized anti-rust |
| Forklift Access | 4-way entry | 2-way entry optional |
| Folding Space Reduction | 60% space saved after collapse | Optimized folding design available |
Product Advantages
Fully automated spot welding technology. The mesh is uniform and the joints are secure, ensuring resistance to deformation even after long-term stacking and heavy loads. No sharp burrs, preventing worker injuries.
Features an optimized hinged folding structure. Folding and unfolding are flexible and can be easily performed by a single person without additional tools.
We support customization of dimensions, wire gauge, mesh size, side access doors, and load capacity based on your warehouse layout and cargo characteristics.
All products undergo load testing and visual inspection before shipment. Delivery cycles are consistent, and factory prices for bulk orders are competitive.
Our Strengths
We are an experienced manufacturer specializing in collapsible cage pallets, with extensive export experience serving warehouse customers worldwide. We offer flexible OEM and ODM customization to meet your specific size, load capacity, and operational requirements. Every product undergoes rigorous quality inspection. Our optimized folding design, reliable welding, and multi-layered anti-corrosion treatment ensure a long service life. Contact us for cost-effective, export-ready collapsible cage pallet solutions.
Tailored for You
Every warehouse is unique. We provide end-to-end custom solutions -- from initial planning to final installation -- tailored precisely to your space, products, and operational requirements.
We analyze your facility layout and recommend the optimal racking configuration to maximize every square meter.
Specific dimensions, load ratings, and forklift access configurations built to your exact requirements.
Full technical drawings and 3D visualization provided before production begins for your approval.
Compatible solutions for different product categories with different stacking rack sizes -- modular, tool-free assembly.
We design racks to maximize units per shipment, helping reduce your freight costs significantly.
Remote or on-site installation guidance included. Free operator training for all product lines.
15+
Years Experience
5
Production Lines
20yr
Service Life
6h
Response Time
Trusted By
Got Questions?
Yes. They can be safely stacked 3–4 high under their rated load capacity to maximize warehouse space utilization. Do not stack them when they are folded flat.
Foldable cage pallets are designed with foldability in mind to reduce air freight costs. Standard wire mesh pallets typically have a fixed structure and lower long-term storage costs.
Our optimized design allows a single person to quickly fold and unfold them, helping you save on labor costs.
Yes. We offer ODM and OEM services. Dimensions, load capacity, structure, and surface finishes can be customized according to your requirements.
